Model Guide


1972 - 1973 Z1 900

Candy Orange & Candy Yellow (Jaffa & Lemon)

Frame: Z1F-00001 to Z1F-19999

Engine: Z1E-00001 to Z1E-19999

Buy Owners Manual

                                                                Click Here to Shop This Model

First 5000 frame numbers considered 1972 model(worth more money)
raised section where engine number is stamped is shorter than later model
28mm carbs
17mm drain in bottom of float bowl
Single disc
Black engine
Speedometer in  MPH
Mufflers have no stampings on them
Chain oil tank under left hand sidecover

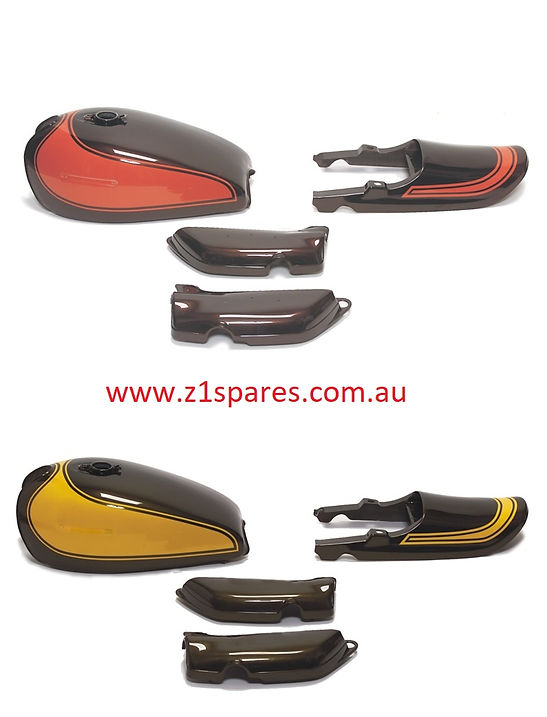

1974 Z1A 900

Candy Brown/Orange & Candy Green/Yellow (Red Tiger & Yellow Tiger)

Frame: Z1F-20001 to Z1F-47499

Engine: Z1E-20001 to Z1E-47497

Buy Owners Manual

                                                                Click Here to Shop This Model

28mm carbs
Single disc
Silver engine
Lines on tail piece go straight back
Speedometer in  MPH or KM/H
Chain oil tank under left hand sidecover

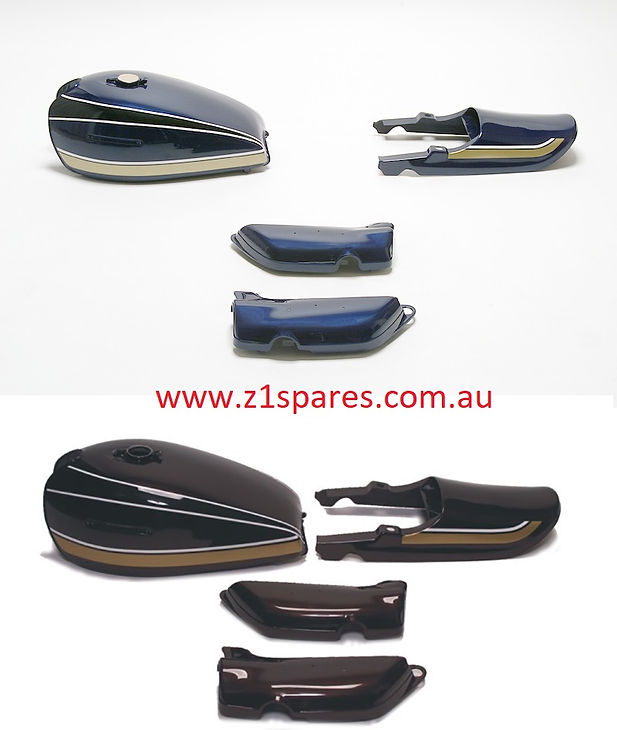

1975 Z1B 900

Candy Super Red & Candy Super Blue

Frame: Z1F-47500 to Z1F-85648

Engine: Z1E-47500 to Z1F-85847

Buy Owners Manual



Click Here to Shop This Model

28mm carbs
Single disc
Silver engine

KM/H Speedo
Brake light in tachometer
Lines on tail piece  curve upwards
No oil tank


1976 Z900A4

Diamond Dark Green & Diamond Brown

Frame: Z1F-085701 to Z1F-117060

Engine: Z1E-086001 to Z1F-138846

Click Here to Shop This Model

Buy Owners Manual

1976 KZ900A4 American Import Diamond Dark Green & Diamond Brown

Frame: Z1F-500001 to Z1F-510340

Engine: Z1E-086001 to Z1F-138846

Z900A4

26mm carbs
Twin disc
Silver engine

KM/H Speedo
No reflectors on forks
No reflectors on rear shocks
New Frame (thicker tubing),
Tailpiece-Ducktail different shape
New fuel tank(seam on outside of tank) ,speedo & tacho, seat
New seat lock type ,sidecovers
Square tailight
New airbox and instrument panel

KZ900 Differences (american)

Single Disc

KZ Side cover badges

MPH Speedo


1977 Z1000A1

Diamond Wine Red & Diamond Sky Blue

Frame: KZT00A-000001 to KZT00A-027500

Engine: KZT00AE-000001 to KZT00AE-042500



Click Here to Shop This Model


1978 Z1000A2

Luminous Red & Luminous Green

Frame: KZT00A-027501 to KZT00A-038427

Engine: KZT00AE-042501 to KZT00AE-081565



Click Here to Shop This Model


1978 Z1R D1

Metallic Stardust Silver

Frame: KZT00D-000001 to KZT00D-017500

Engine: KZT00DE-000001 to KZT00DE-017500



Click Here to Shop This Model


1980 Z1R D3

Ebony (Black)

Frame: KZT00D-017801 on

Engine: KZT00DE-017616 on



Click Here to Shop This Model
